Zeeda Energy K Series 3.5-7kw EV Charger Type 1 Type 2 IP66

Zeeda Energy K Series 3.5-7kw EV Charger Type 1 Type 2 IP66

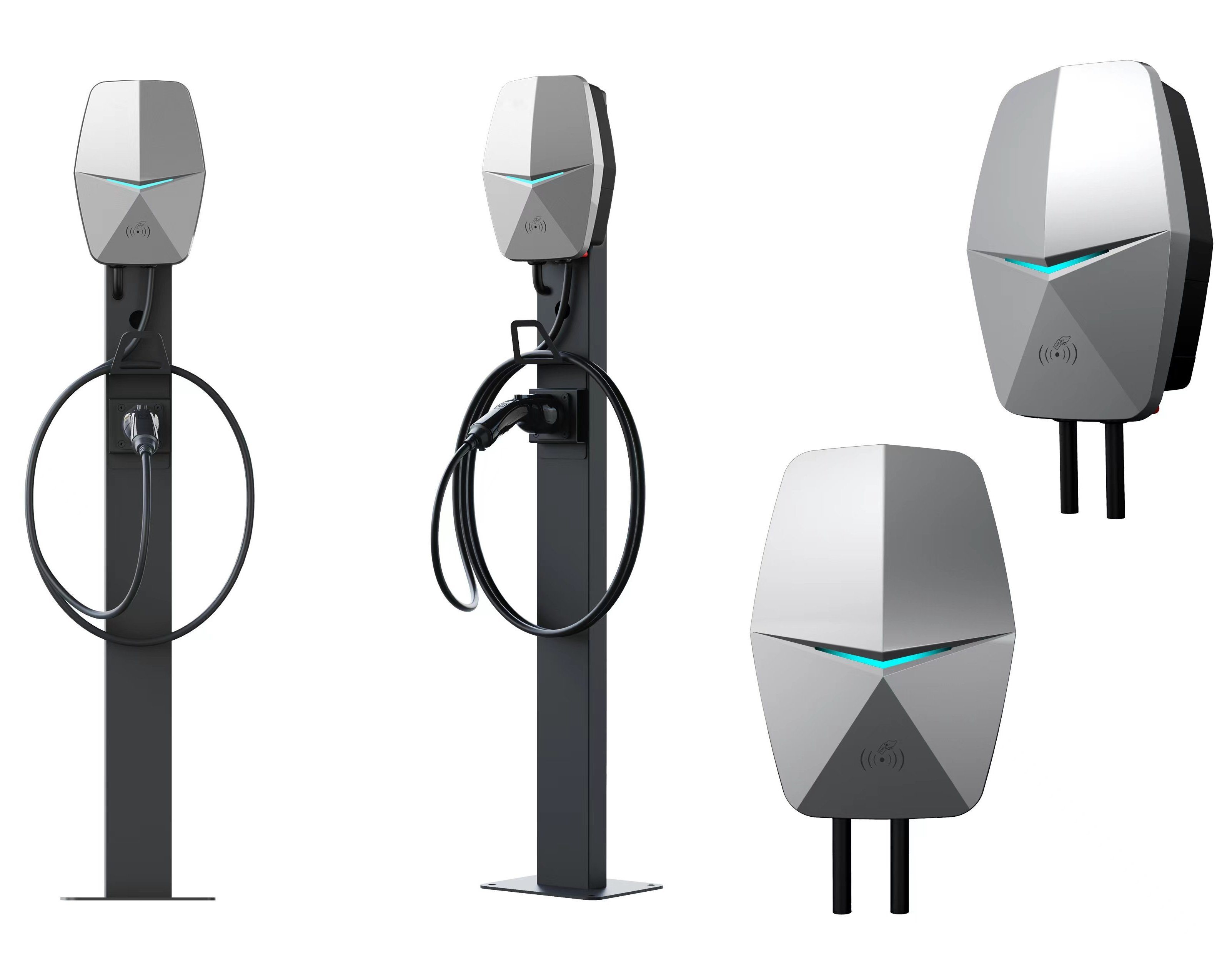

K Series is a smart, durable and compact AC EV charger that is suitable for home and commercial use. It can be wall-mounted or floor-mounted with optional pedestal. It complies with both US and EU standard and is CE, CB, FCA, RCM, CSA, FCC/IC, Energy Star certified.

Power and Current:   7kW 32A / 3.5kW 16A

Connector Type:   Type 2, Type 1

IP Rating:   IP66



0.00
0.00


K Series is a smart, durable and compact AC EV charger that is suitable for home and commercial use. It can be wall-mounted or floor-mounted with optional pedestal. It complies with both US and EU standard and is CE, CB, FCA, RCM, CSA, FCC/IC, Energy Star certified.

Power and Current:   7kW 32A / 3.5kW 16A

Connector Type:   Type 2, Type 1

IP Rating:   IP66






Specifications

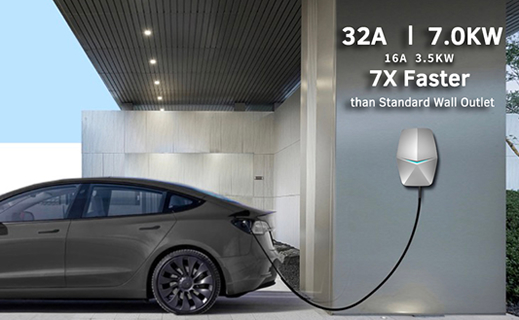

Power and current: 7kW 32A

Voltage: AC 165 - 265V, Single phase

Operating frequency: 47 - 63Hz

Connector type: Type 2, AC230V 32A

                          Type 1, AC240V 32A

Optional Plug-in Version: NEMA 14-50, NEMA 6-50


IP rating: IP 66

Operating temperature: - 40°C - + 65°C

Storage temperature: - 40°C - + 85°C

Relative humidity: 5 - 95%, without condensation

Maximum altitude: 4000m


Features


Connectivity

RFID, WIFI, 4G, OCPP 1.6J



Protection

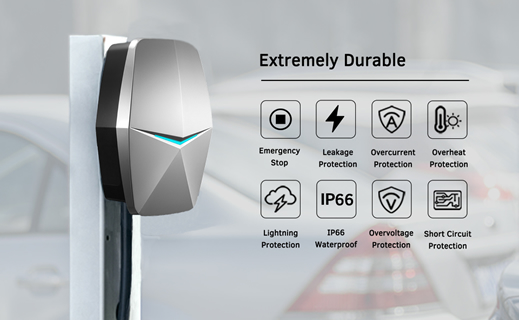

Undervoltage/Overvoltage, Overcurrent, Overheat, Short circuit, Leakage, Lightning, Emergency stop protection



Safety and reliability

CE, CB, FCA,RCM, CSA, FCC/IC, Energy Star, CQC certified

Dedicated laboratory for long-term reliability testing
