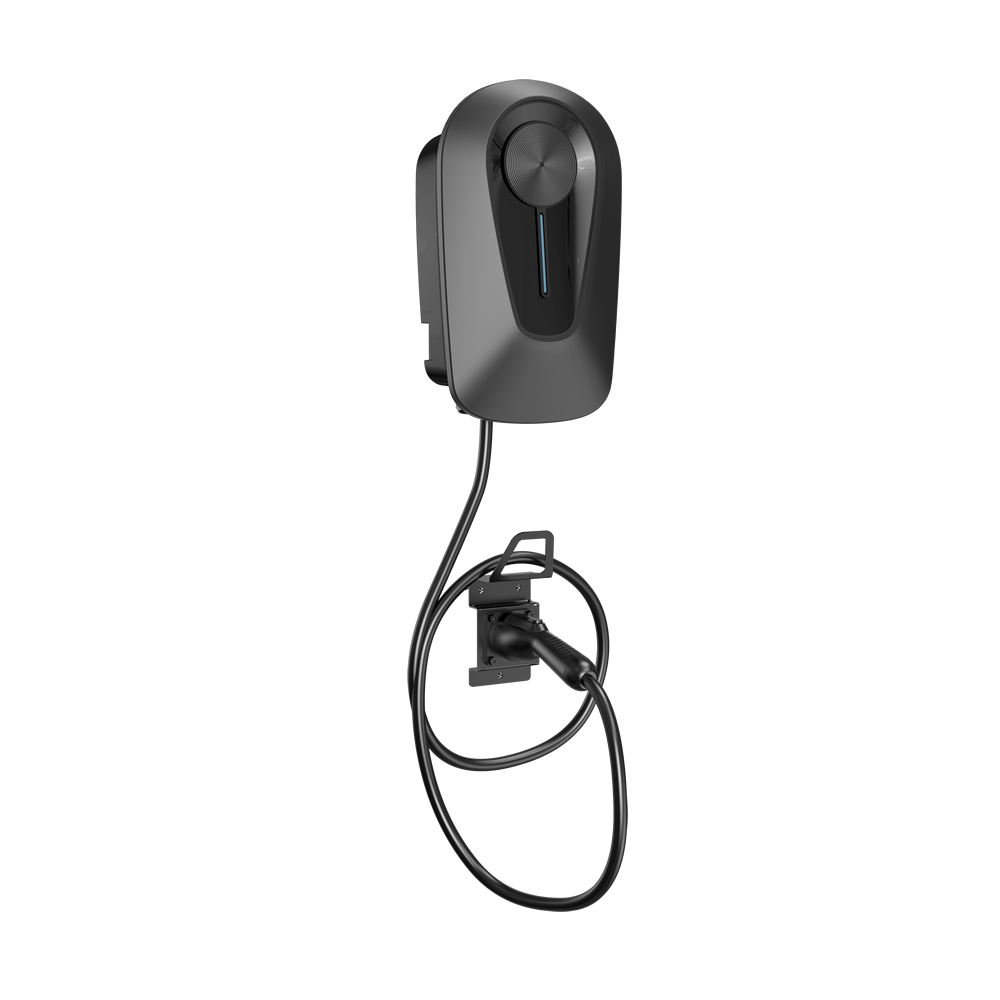

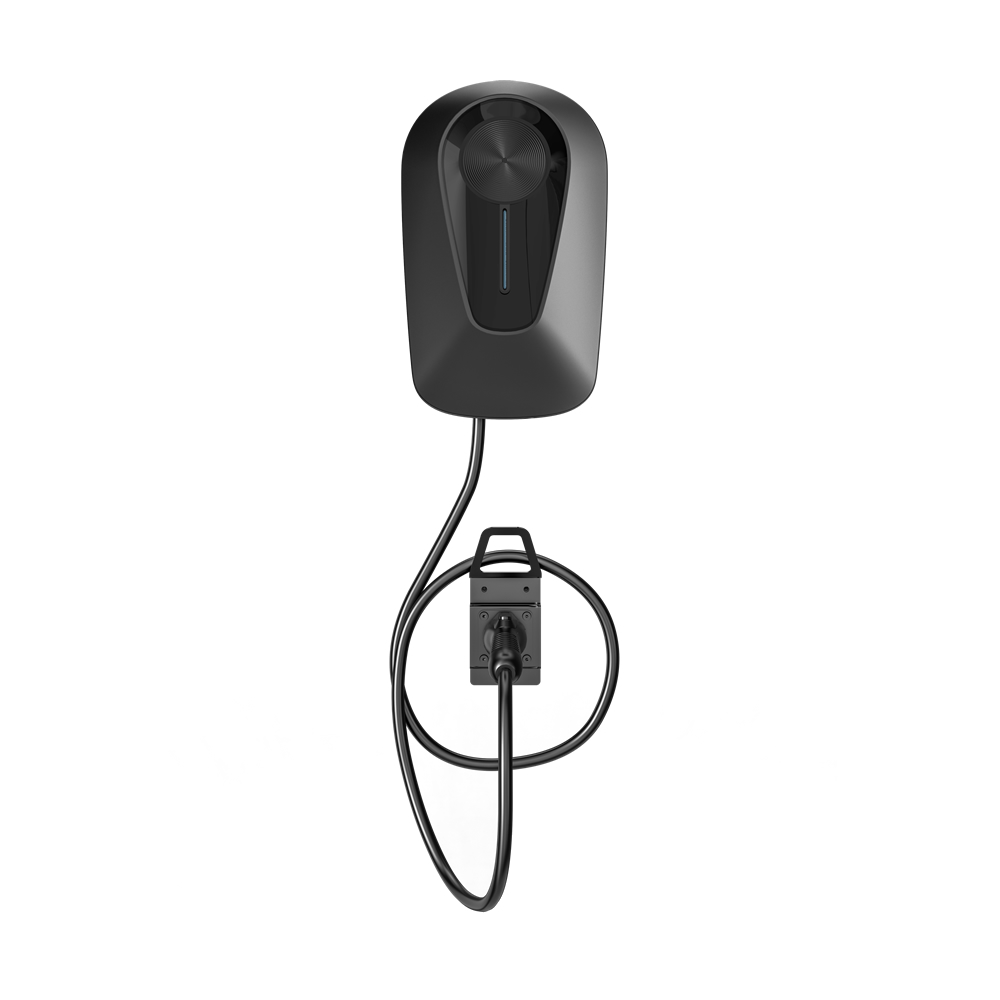

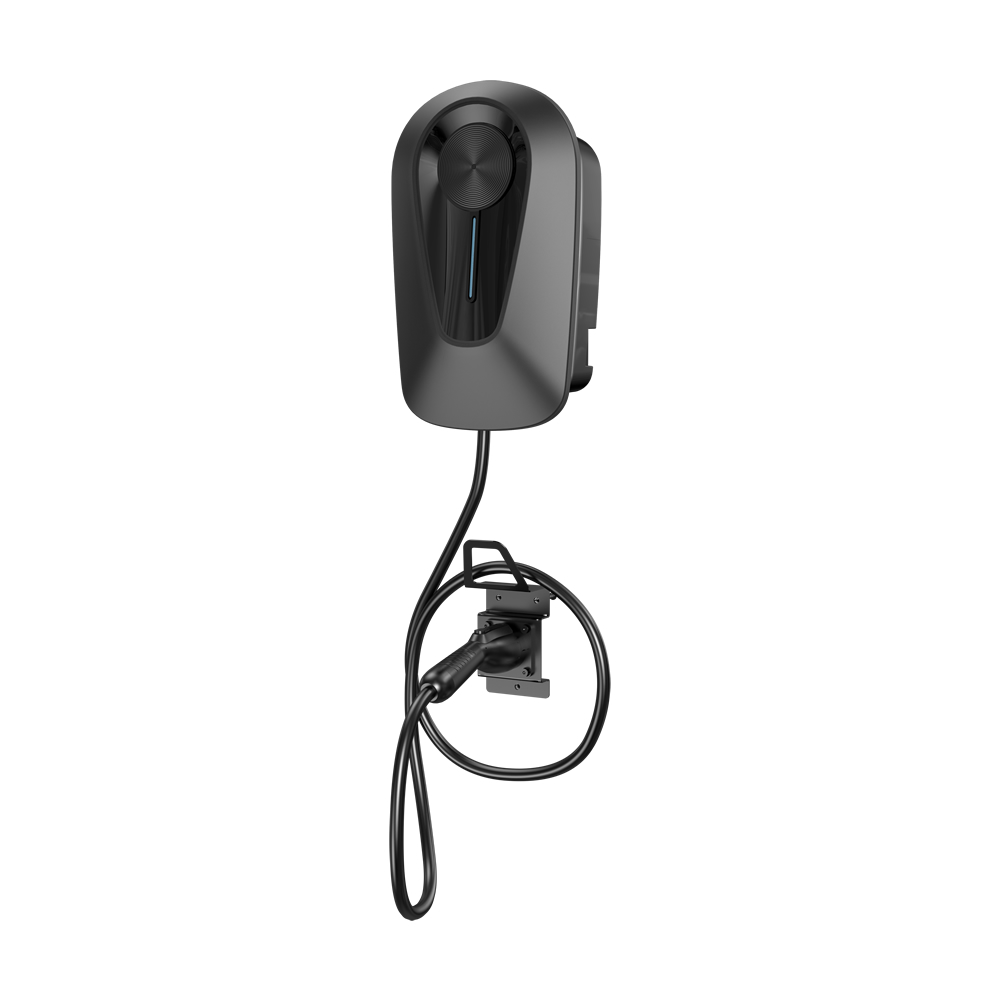

Zeeda Energy E Series 11-22kW EV Charger Type 2 IP55

Zeeda Energy E Series 11-22kW EV Charger Type 2 IP55

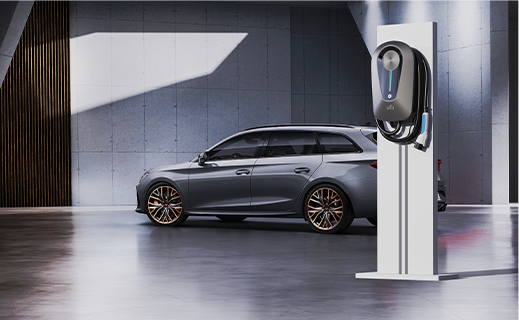

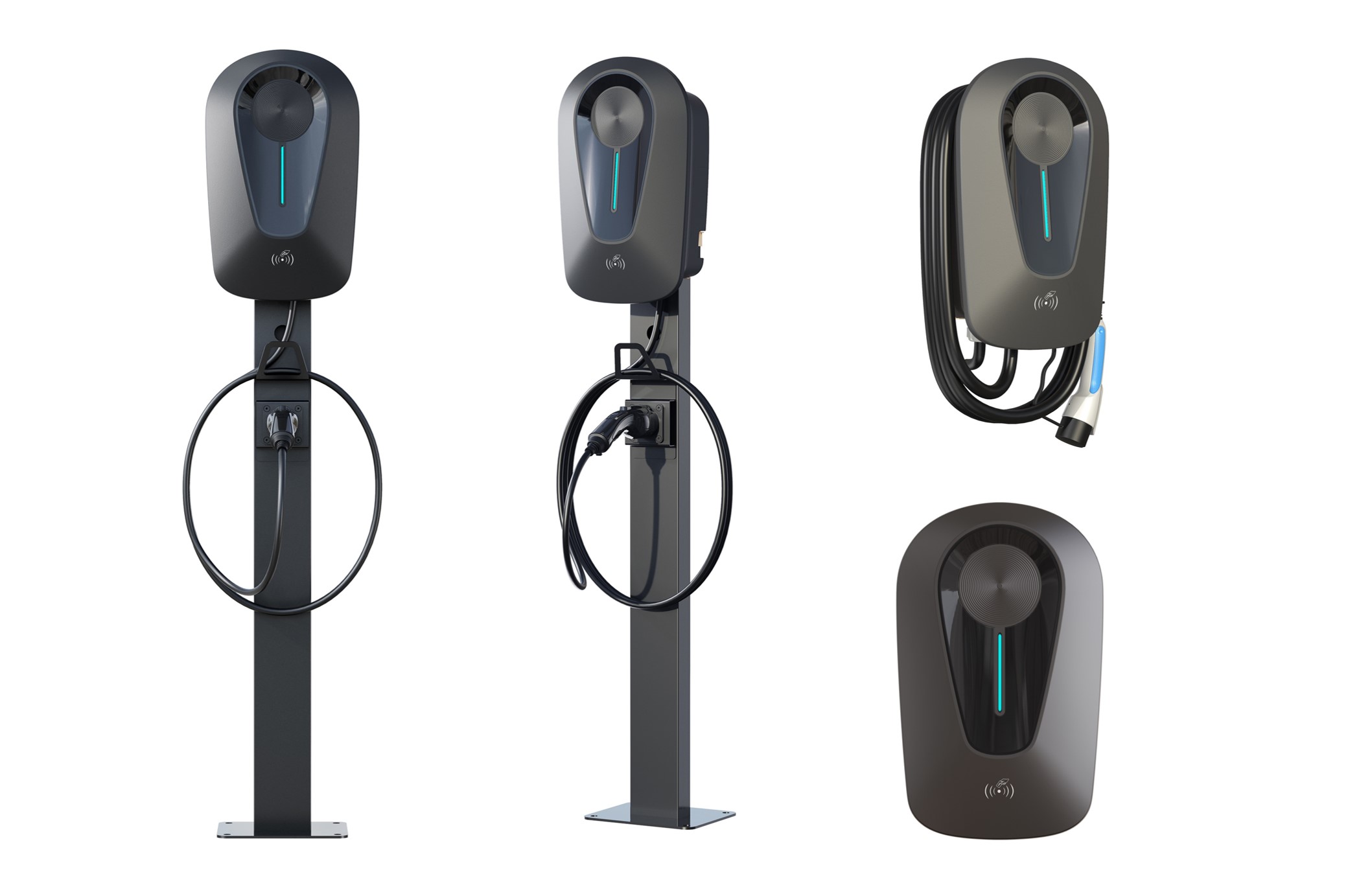

Explorer is an elegant, powerful and compact EV charger that is suitable for home and commercial use. It can be wall-mounted or floor-mounted with optional pedestal. It complies with EU standard and is CE, CB, UKCA, TR25 certified.

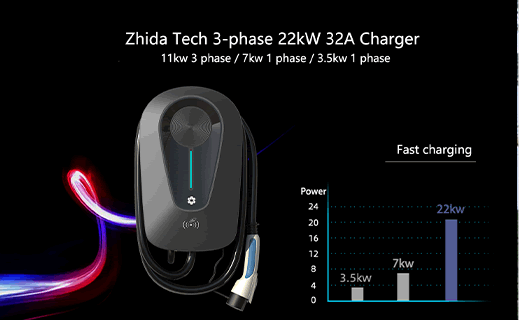

Power and Current: 22kW 32A/11kW 16A

Connector Type: Type 2

IP Rating: IP55


0.00
0.00


Explorer is an elegant, powerful and compact EV charger that is suitable for home and commercial use. It can be wall-mounted or floor-mounted with optional pedestal. It complies with EU standard and is CE, CB, UKCA, TR25 certified.


Power and Current: 22kW 32A/11kW 16A

Connector Type: Type 2

IP Rating: IP55





Specifications

Power and current: 22kW 32A / 11kW 16A

Voltage: AC 323 - 437 V, Three phase

Operating frequency: 47 - 63Hz

Connector type: Type 2, AC230V 32A


IP rating: IP 55

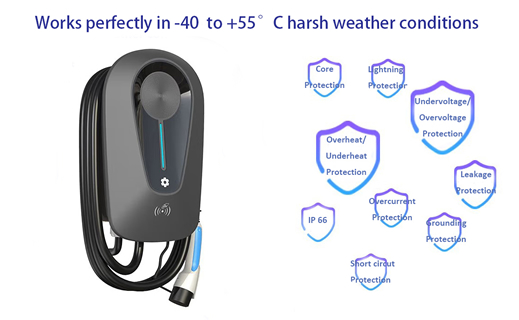

Operating temperature: - 40°C - + 55°C

Storage temperature: - 40°C - + 85°C

Relative humidity: 5 - 95%, without condensation

Maximum altitude: 4000m


Features

Connectivity

RFID, WIFI, 4G, OCPP 1.6J


Protection

Undervoltage/Overvoltage, Overcurrent, Overheat, Short circuit, Leakage, Lightning, Emergency stop protection


Safety and reliability

CE, CB, UKCA, TR25, CQC certified

Dedicated laboratory for long-term reliability testing

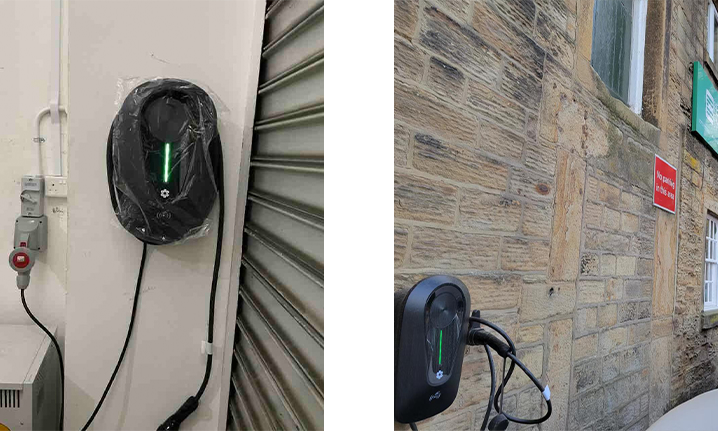

Cases Overseas
