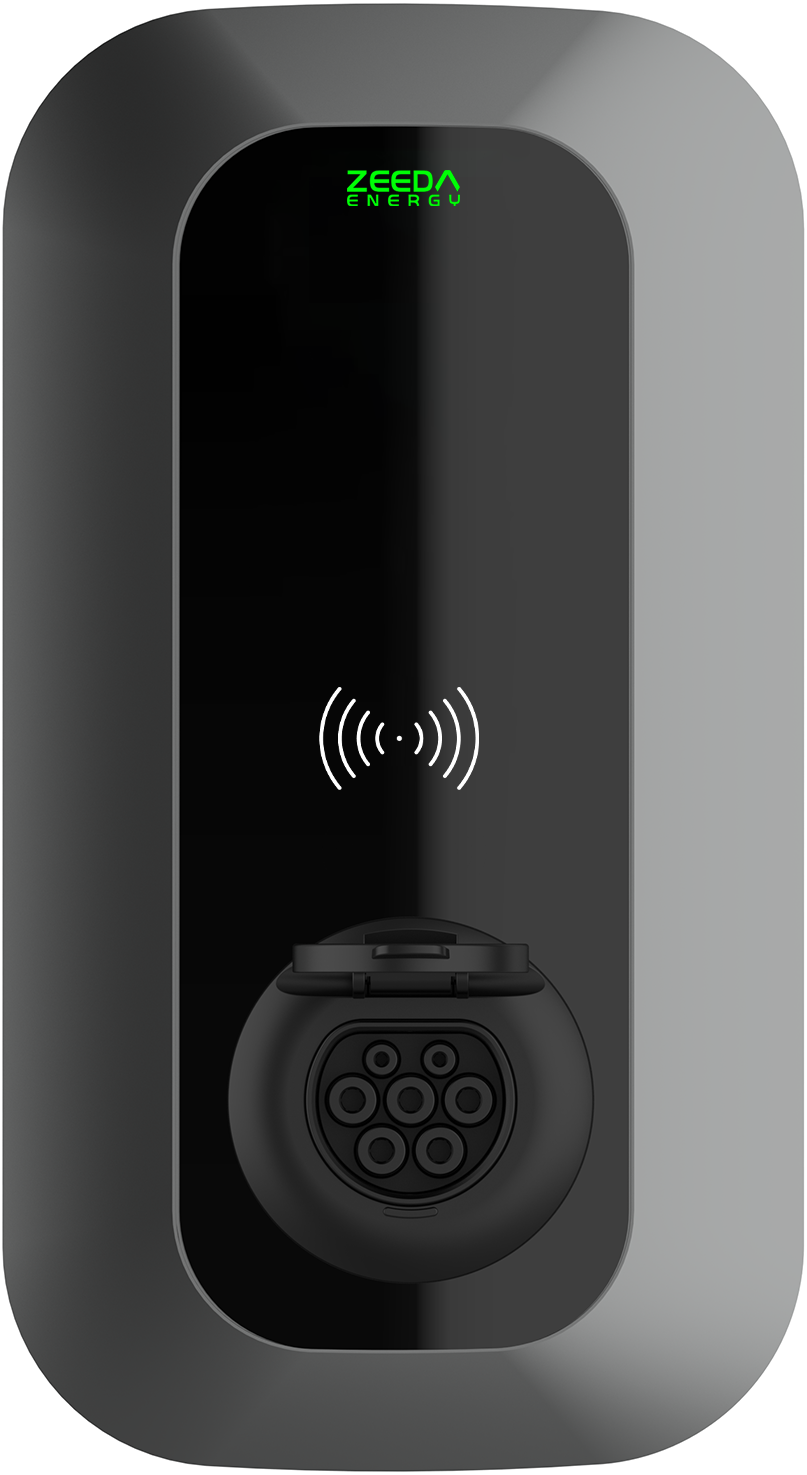

Product model: ZDZAU207N-BS

Power and Current: 7KW（32A,230V)

Authentication: Plug and Charge;  RFID Authentication Optional

Connectivity: Customer App, WiFi + BT, OCPP 1.6 (Optional)

Ingress Protection:   IP65

Relative Humidity: 5-95%, Without Condensation

Residual Current Protection Rated Operating Current: 30mA, +DC 6mA

Operating Temperature: -20℃～+50℃

Storage Temperature: -25℃～+70℃

Altitude: ≤ 2000m

Frequency（Hz）： 50/60Hz

Charging Mode: Mode 3

Connector Type (IEC62196-2): Type 2

Certifications: IEC61851-1,  IEC61851-22,  IEC62196-2

Weight: 2.3kg

Dimension：W21.8*103.9*405mm（without cable）

Cable Width：3×6mm²
