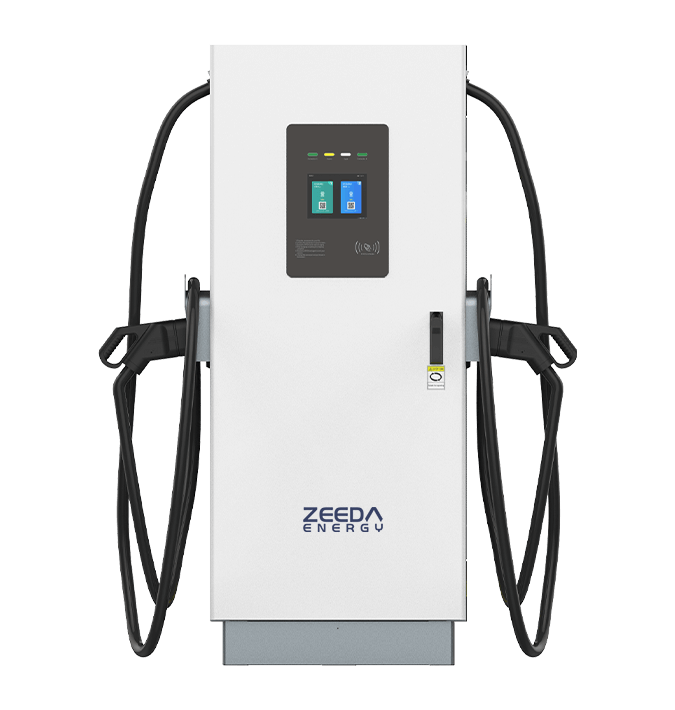

J Line_DC Charging_Product_Zeeda Energy

Contact Us

AC Charging

Traveller Traveller 3.5kW Traveller Lite 3.5kW Guardian Guardian 7kW Guardian Pro 7kW KingKong KingKong 7kW Explorer Explorer 7/11/22kW Explorer 2 Explorer 2 Pro 7/11/22kW Explorer 2 Flex 7/11/22kW Explorer 2 7/11/22kW Mini Z Mini Z 7kW
DC Charging

30kW/40kW J Line 60kW J Line 80kW J Line 120kW/140kW/160kW J Line 180kW/200kW/240kW/250kW J Line Z Line 300kW/360kW/420kW J Line
Robotic Charging

FS200 FS200B FS200C FS200D FA400 FA400A FA400B FA400C MA400 MA400G MA400GB
HEMS
Manufacture Partnership
Resources

Technical Specifications

Power

180-250kW
Input Voltage

Three phase，400VAC±15% TN-S
Frequency

45~65 Hz
Max Output Current

CCS2：400A
GBT：250A
CHAdeMO 125A
Operating Temperature

-30℃～+50℃
Relative Humidity

5-95%, without condensation
Ingress Protection

IP54
Cooling Method

Forced Air-Cooling
Network Connection

4G/Ethernet
Communication Protocols

OCPP1.6J or OCPP2.0.1
Screen

8"LCD Touch Screen
Cable length

5m or 7m（Optional other lengths）
Dimensions（W*D*H）

750*605*1805mm
Packing Size（W*D*H）

180kW：1170*880*2080mm 240kW：1240*1050*2120mm
Weight（Including outer packaging）

460kg、528kg
Payment

APP/RFID/POS(Optional)
Language

Support customizing languages
Certificate

TUV CE
