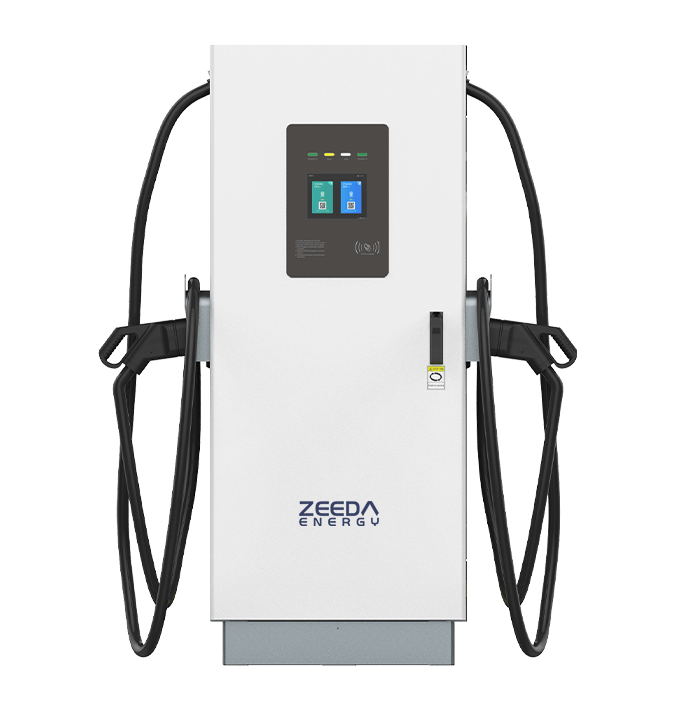

Technical Specifications

Power

300、360、420kW
Input Voltage

Three phase，400VAC±15% TN-S
Frequency

45~65 Hz
Max Output Current

CCS2：400A GBT：300A
Operating Temperature

-30℃～+50℃
Relative Humidity

5-95%, without condensation
Ingress Protection

IP54
Cooling Method

Forced Air-Cooling
Network Connection

4G/Ethernet
Communication Protocols

OCPP1.6J or OCPP2.0.1
Screen

8"LCD Touch Screen
Cable length

5m or 7m（Optional other lengths）
Dimensions（W*D*H）

850*1100*2200mm
Packing Size（W*D*H）

1210*1130*2480mm
Weight（Including outer packaging）

695kg、750kg、806kg
Payment

APP/RFID/POS(Optional)
Language

Support customizing languages
Certificate

NTC CE
*Please click the button for more details and downloadable files.

Download
