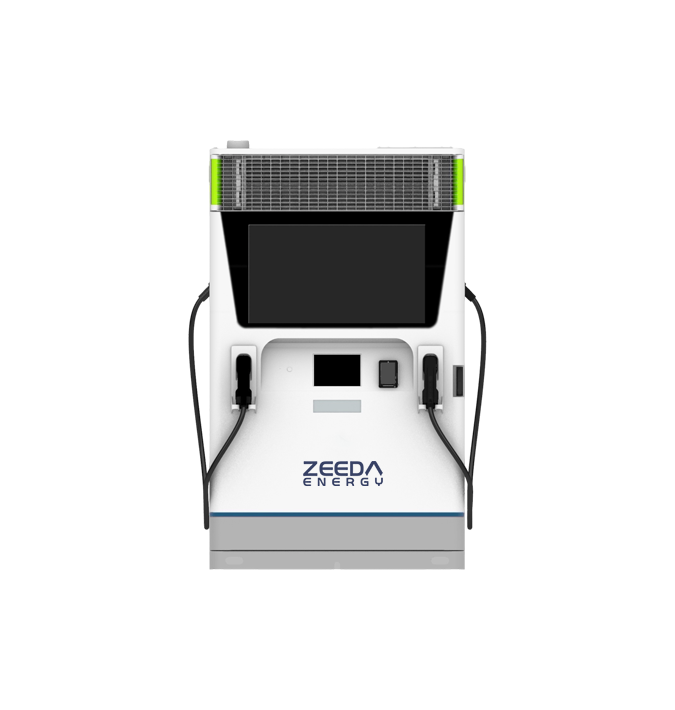

Z Line 250kW
Engineered for premium high-power charging, the Z-Line supports ultra-fast charging with advanced power management and dual-connector capability. Designed for flagship charging hubs and high-demand corridors, it combines precision control, modular architecture, and long-term scalability
Global high-standard technology
Extreme safety protection
Modern superior designs
  • Ultra-fast output
    Dual charging points deliver up to 350 A, cutting downtime for high-turnover fleets
  • Flexible, off-grid power
    Built-in battery enables deployment without grounding wires, making installation faster and siting more versatile
  • Engineered for extremes
    Proven to operate in >50 °C environments, with IP55 cabinet protection, IP67-rated battery pack, and IK10 impact resistance designed for reliable performance in harsh Middle Eastern climates
Technical Specifications
  • Certification
    CE (CE)
  • Protection
    IP 55 System
    IP 67 Battery
  • Mechanical Protection
    IK 10
  • Max system DC output powerii
    250kW
  • Dimension (H x W x D)
    2260mm x 1340mm x 1100mm
  • Weight
    2650 kg
  • Operating Temperature
    -25° C to 50° C
  • Humidity
    5% to 90%
  • Network Connections1
    GSM/3G/LTE (CE)
  • EMC emission1
    IEC 61000-6-2, IEC 61000-6-4, EN
    61851-21-2:2018 (CE)
  • Noise emission (at 1m distance)
    ≤ 55 dB(A)
  • *Please click the button for more details and downloadable files.
