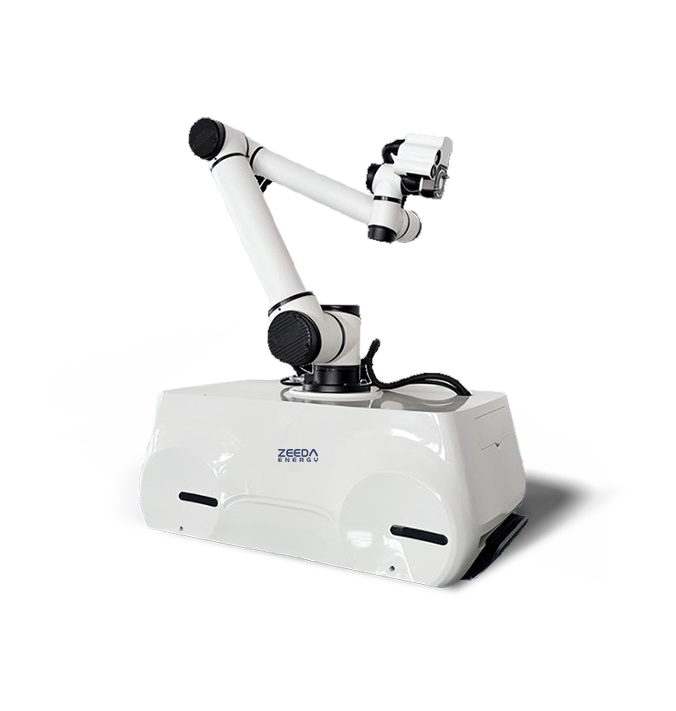

MA400G_MA400_Robotic Charging_Product

Technical Specifications

Overall weight

<200kg
Overall dimensions

<1300mm*700mm*1400mm
The height at which it is inflated

750-1200mm
Arm length

≥1350mm
Operating temperature

-10°C ~ 45°C
IP(Ingress protection)

IP54
Humidity

20%～95%
Maximum effective operating range

Length Direction: 200mm
Width Direction ± 200mm
Height Direction 750-1200mm
Adapts to the yaw angle range of the charging cradle

±3°
Robotic arm degrees of freedom

6
Visual positioning accuracy

0.1mm
Matching success rate

Not less than 99.9%
Maximum matching time

No more than 60s（Max 15s）
Interfaces/Protocols

Bluetooth/485/Ethernet/4G/wifi
control

Remote Control/Backend
Power consumption

Max2kW，The average does not exceed1kW
Robot Travel Speed

30m/min
Robot Turning Radius

≤1m
Robot Navigation Method

LiDAR / SLAM
Minimum Ground Clearance

20mm
