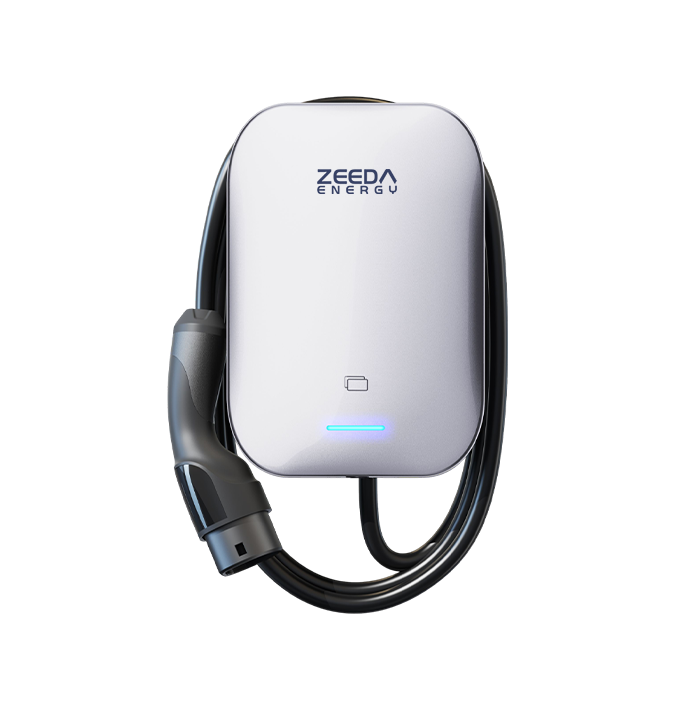

Guardian Pro enhances the Guardian platform with a refined enclosure and upgraded durability. It delivers the same proven safety architecture in a more premium design for long-term residential installations.
Global high-standard technology
Extreme safety protection
Modern superior designs

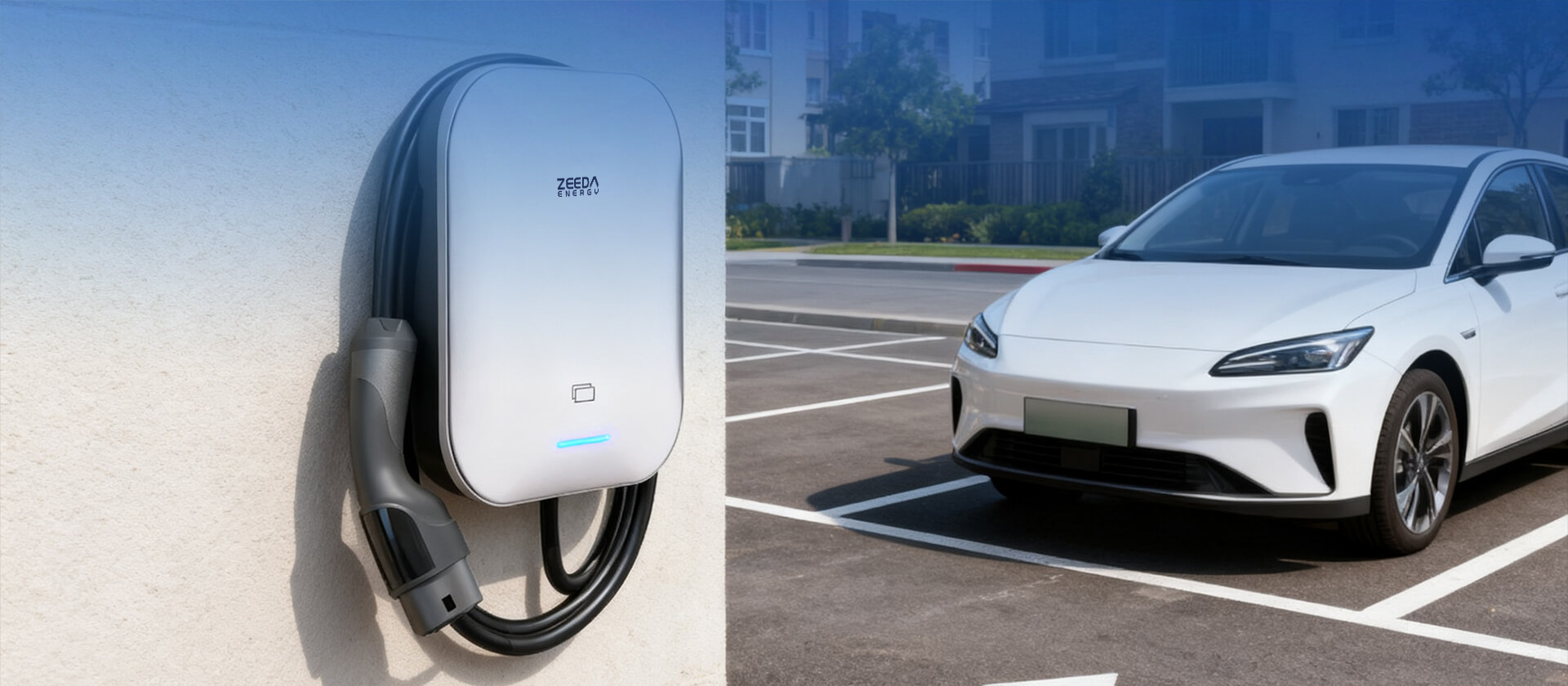

Single Phase with 7kW AC Charging
Single-phase 7kW stable output, charging 7 kWh per hour, compatible with mainstream new energy vehicles. It can be installed with 220V household electricity, balancing efficiency and universality.

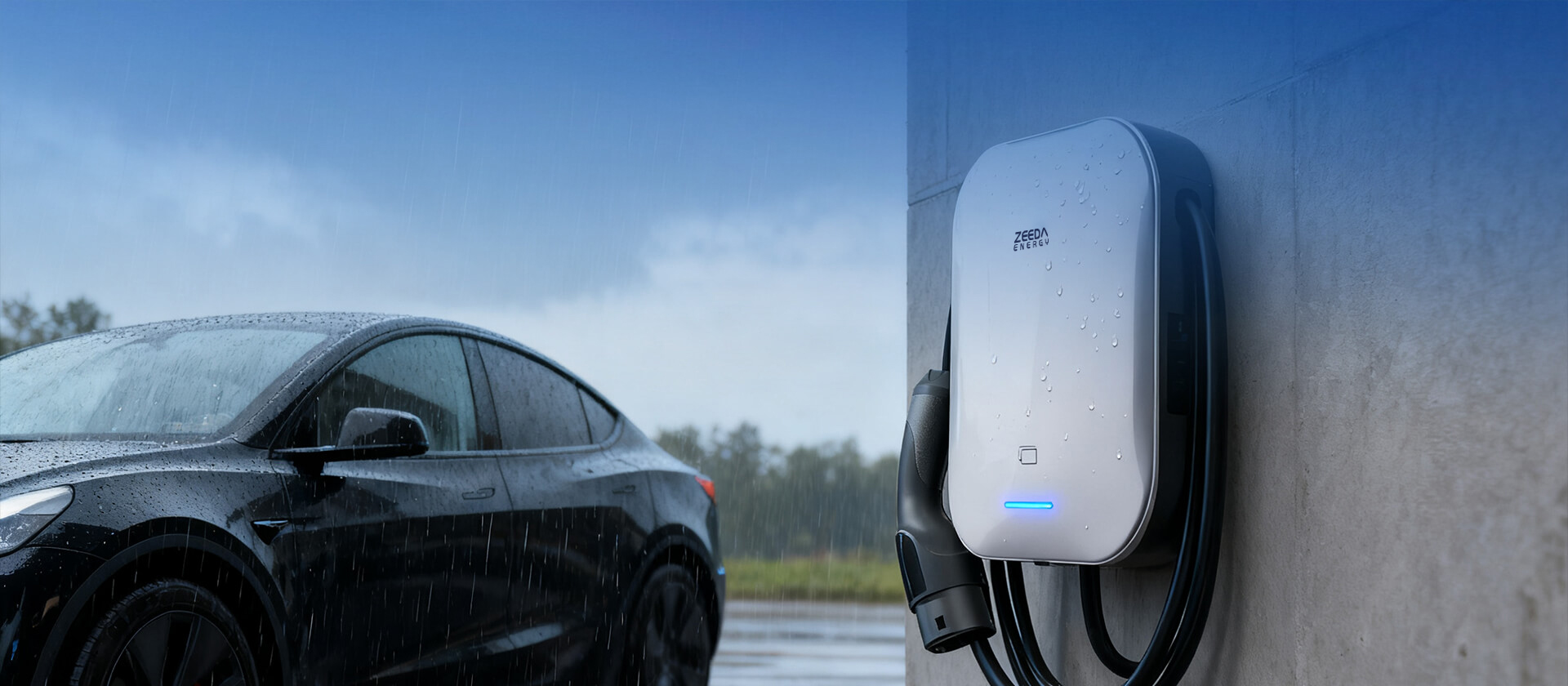

IP55 Rated for Indoor/Outdoor Applications
Features dust-proof and low-pressure water spray-resistant design, resisting rain, snow, and dusty environments. It operates stably whether in residential yards or commercial parking lots.

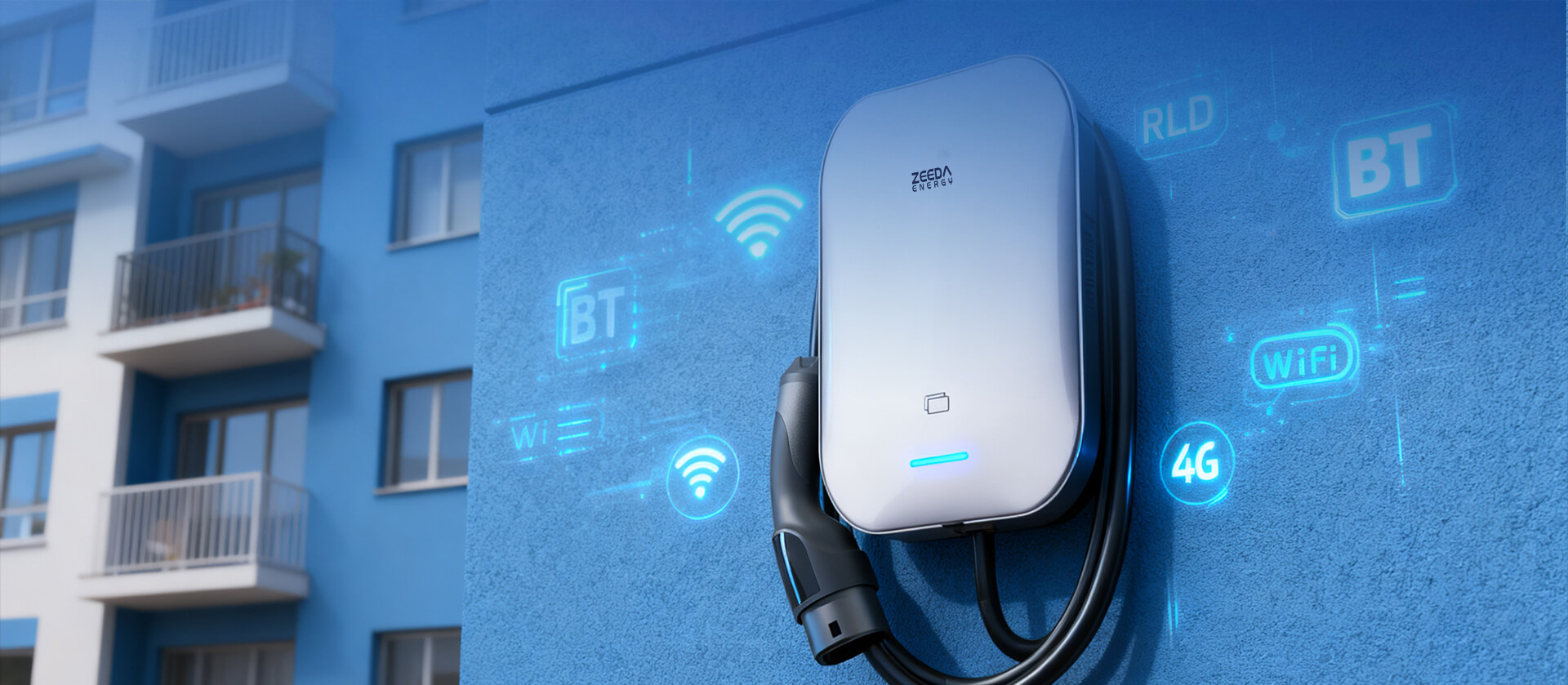

Diversified Wireless Connectivity
Optional functions include RFID card swiping, Bluetooth/WiFi short-range control, or 4G remote management. Suitable for private exclusive charging piles and commercial shared scenarios, enabling more convenient charging start/stop.
Technical Specifications
Rated Input AC Voltage
AC165~265V
Operating Frequency
47~63Hz
Rated AC Operating Current
32A; 3.5kW/7kW
Ip Rating
IP55
Operating Altitude
≤3000m
Operating Humidity
5%~95%, Non Condensing
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Residual Current Protection Rated Operating Current
AC 30mA + DC 6mA
Residual Current Protection Rated Action Time
≤0.1 s
Connector Mechanical Operating Life
≥10000 times
Product Size
310mm*.214mm*90mm
