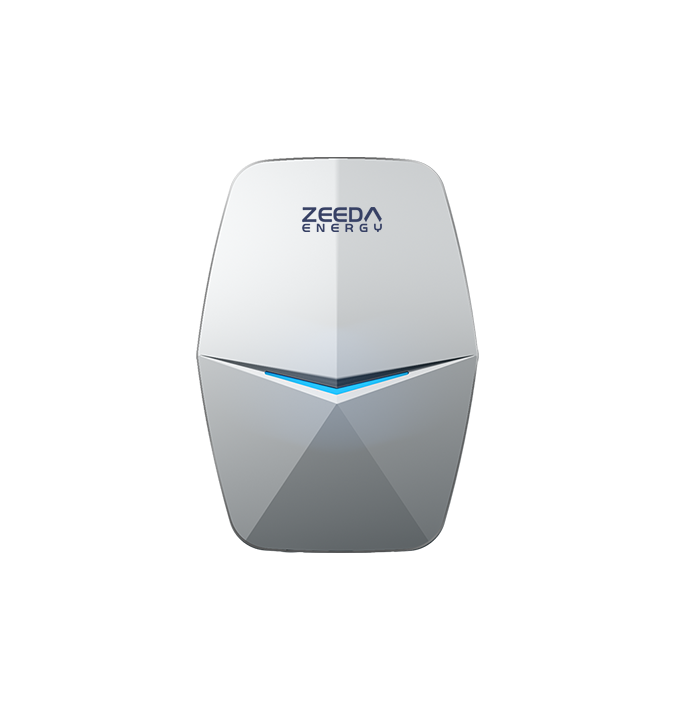

Built for extreme durability, King Kong features a reinforced housing, full protection suite, and strong thermal performance. It is ideal for outdoor, semi-public, and high-wear environments.
Global high-standard technology
Extreme safety protection
Modern superior designs
Built to last. Designed to perform.
The King Kong Series delivers industrial-grade durability with IP66 protection and reinforced materials — ready for extreme weather, daily use, and years of reliable charging.
Technical Specifications
Rated Input AC Voltage
AC165~265V
Operating Frequency
47~63Hz
Rated AC Operating Current
32A;3.5kW/7kW
IP Rating
IP66
Operating Altitude
≤4000m
Operating Humidity
5%~95%, Non-Condensing
Operating Temperature
-40°C to +60°C
Storage Temperature
-40°C to +85°C
Residual Current Protection Rated Operating Current
AC 30mA + DC 6mA
Residual Current Protection Rated Action Time
≤0.1 s
Connector Mechanical Operating Life
≥10000 uses
Product Size
420mm*251mm*145mm
*Please click the button for more details and downloadable files.
