Explorer 2 Pro adds a full-screen interface and advanced user interaction, making it well suited for public and semi-public sites where usability and visibility matter.
Global high-standard technology
Extreme safety protection
Modern superior designs

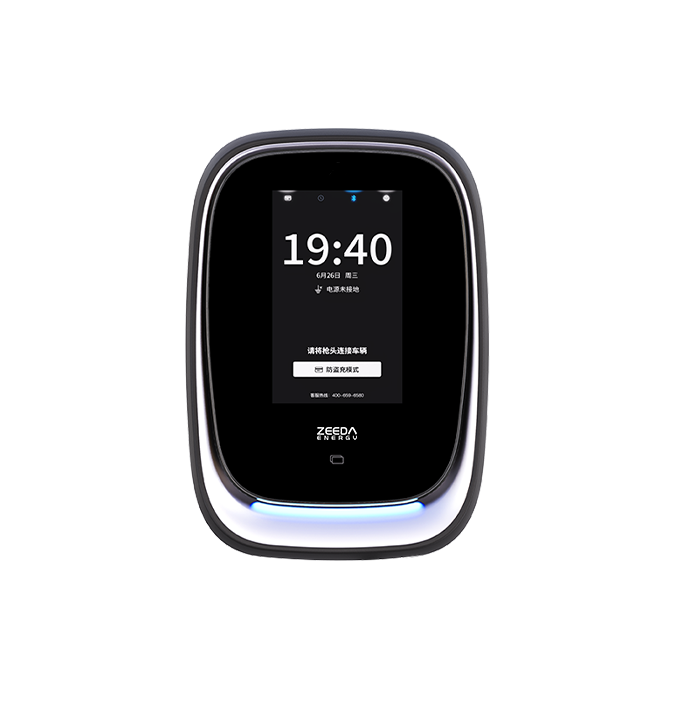

7-Inch Large IPS Screen
Single/Three Phases with Optional 7kW,11kW or 22kW AC Charging
10 Layers of Protection – Peace of Mind for Outdoor Use
IP66 Rated for Indoor/Outdoor Applications,With Screen
Fast Charging, Easy Travel
Optional Wireless Connection with RFlD/BT/Wifi/4G Functions
Technical Specifications
Rated Input AC Voltage
AC165~265V, AC323~437V
Operating Frequency
47~63Hz
Rated AC Operating Current
16/32A
IP Rating
IP66
Operating Altitude
≤2000m
Operating Humidity
5%~95%, Non Condensing
Operating Temperature
-40°C to +55°C
Storage Temperature
-40°C to +85°C
Residual Current Protection Rated Operating Current
AC 30mA + DC 6mA
Residual Current Protection Rated Action Time
≤0.1 s
Connector Mechanical Operating Life
≥10000 times
Product Size
234mm* 334mm*118mm
*Please click the button for more details and downloadable files.
