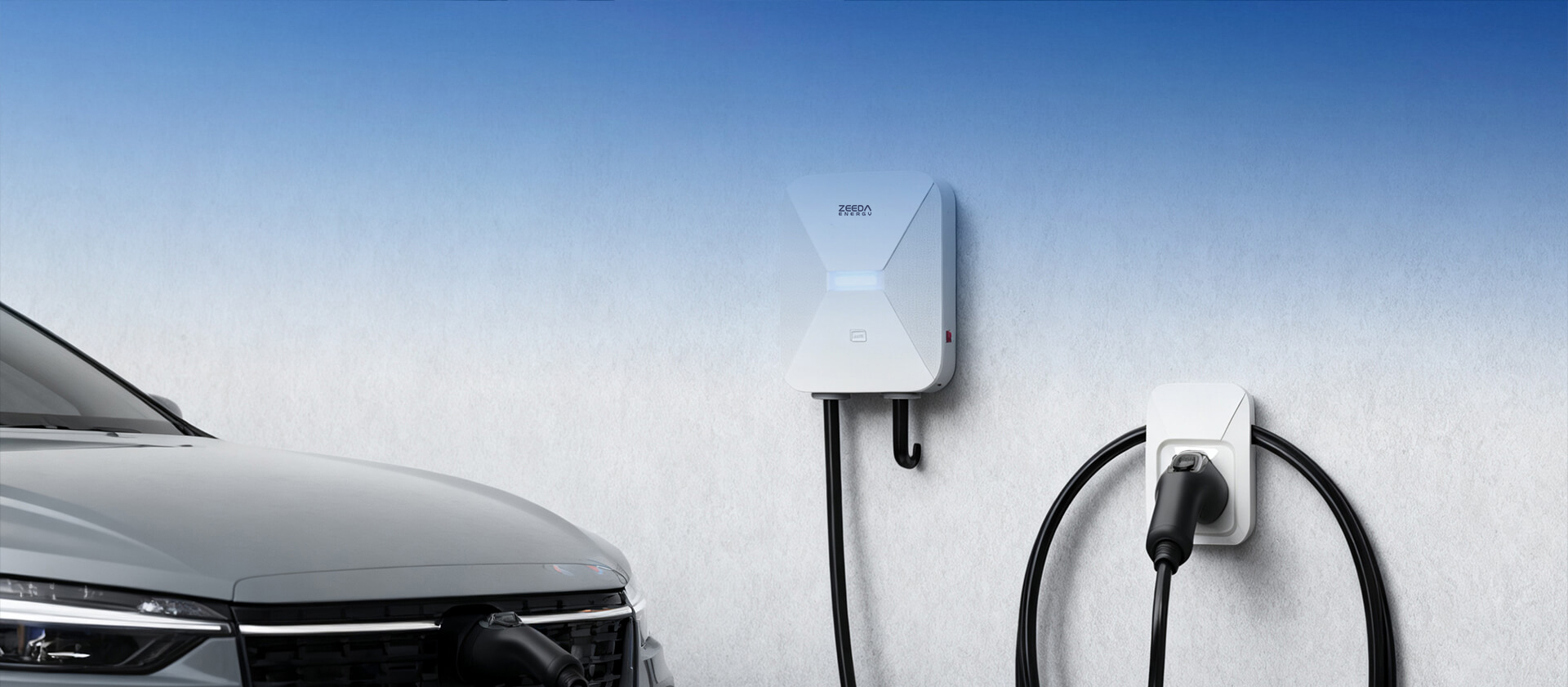

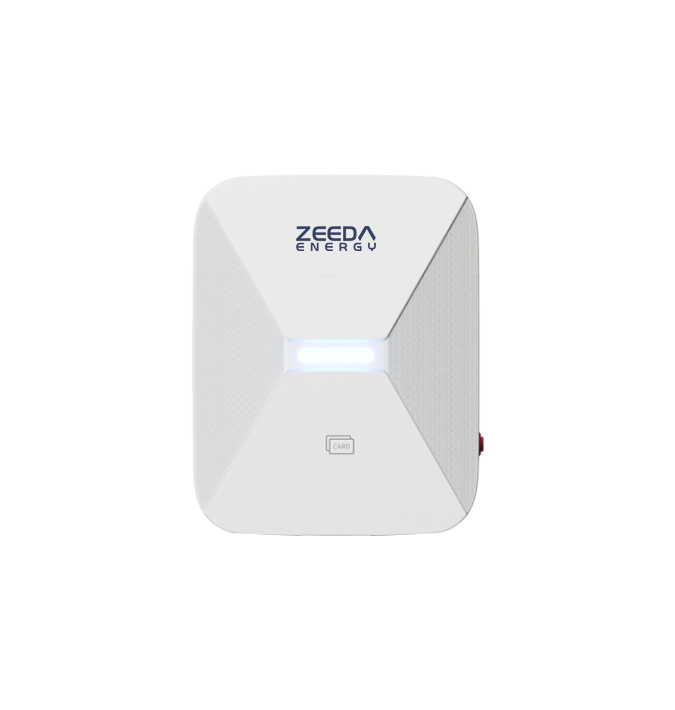

Compact and efficient, Mini Z is designed for space-limited residential settings. Its minimalist form delivers full safety protection with a clean, unobtrusive footprint
Global high-standard technology
Extreme safety protection
Modern superior designs
Single Phase with 7kW AC Charger

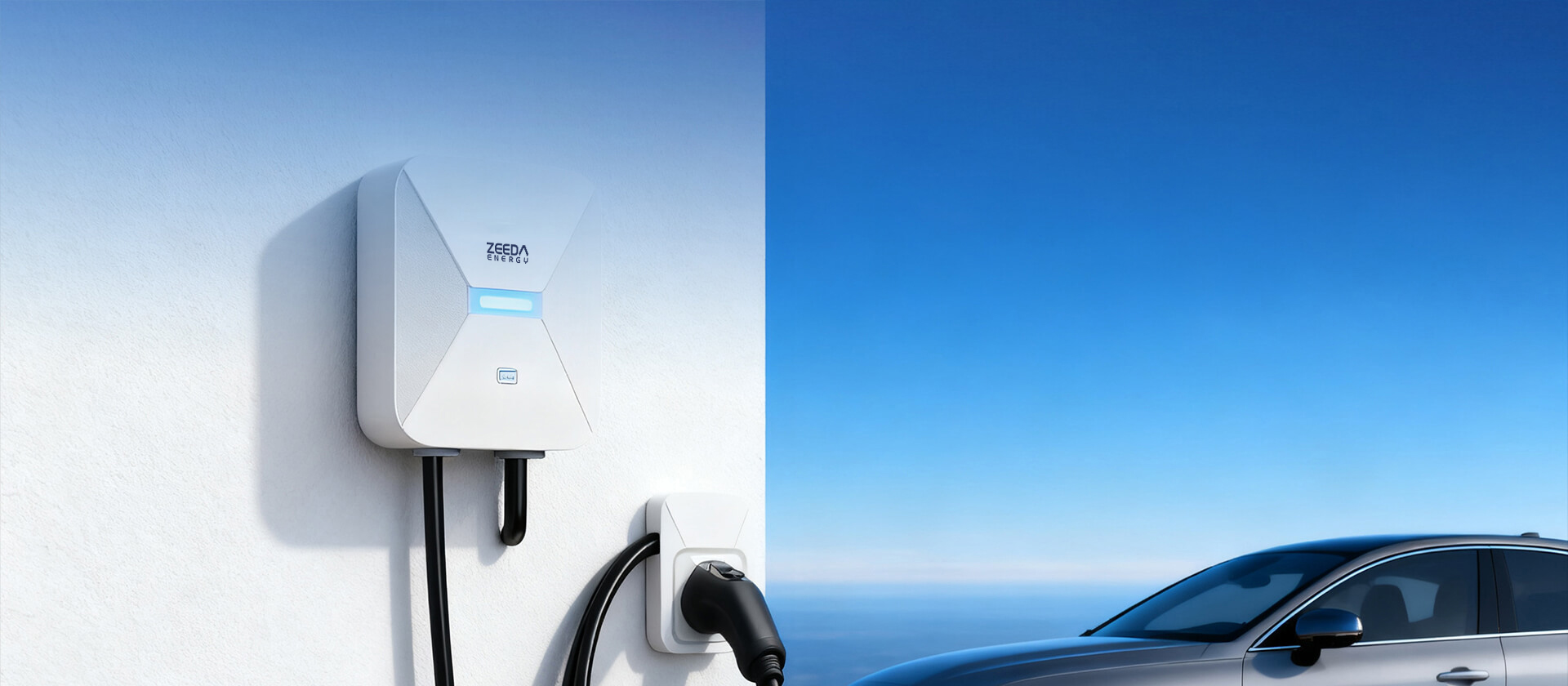

Compatible with 220V wide-range voltage, equipped with dual temperature control technology for plug and pile. It can be directly installed with ordinary household outlets, enabling flexible deployment even in small apartments.

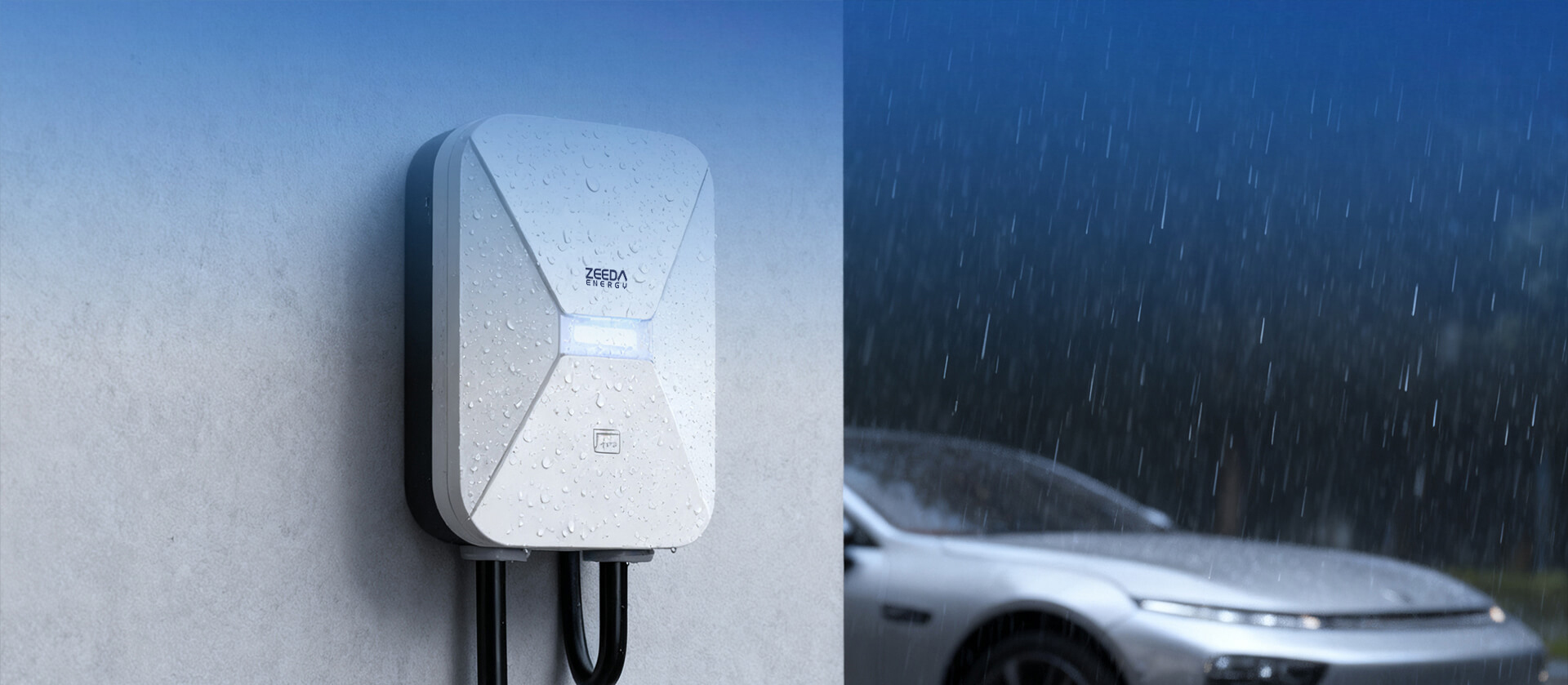

IP55 All-Round Protection – Ten-Fold Safety Guard
Inherits the IP55 dust-proof and low-pressure water spray-resistant design, ensuring stable operation in extreme weather from -30℃ to 50℃. Combined with a ten-fold safety protection system, it fully resists risks such as short circuits and overheating, and can be safely used on indoor balconies or outdoor yards.
Lightweight Smart Control
Focuses on core home needs, supporting lightweight smart functions like APP scan-to-charge. It simplifies redundant modules, balances convenient operation and cost optimization, and perfectly adapts to daily usage scenarios of private charging piles.
Technical Specifications
Rated Input AC Voltage
AC165~265V
Operating Frequency
47~63Hz
Rated AC Operating Current
32A
IP Rating
IP55
Altitude
≤2000m
Operating Operating Humidity
5%~95%, Non Condensing
Operating Temperature
-30°C to +50°C
Storage Temperature
-40°C to +85°C
Residual Current Protection Rated Operating Current
AC 30mA+ DC 6mA
Residual Current Protection Rated Action Time
≤0.1 s
Product Size
204mm* 162mm* 80mm
