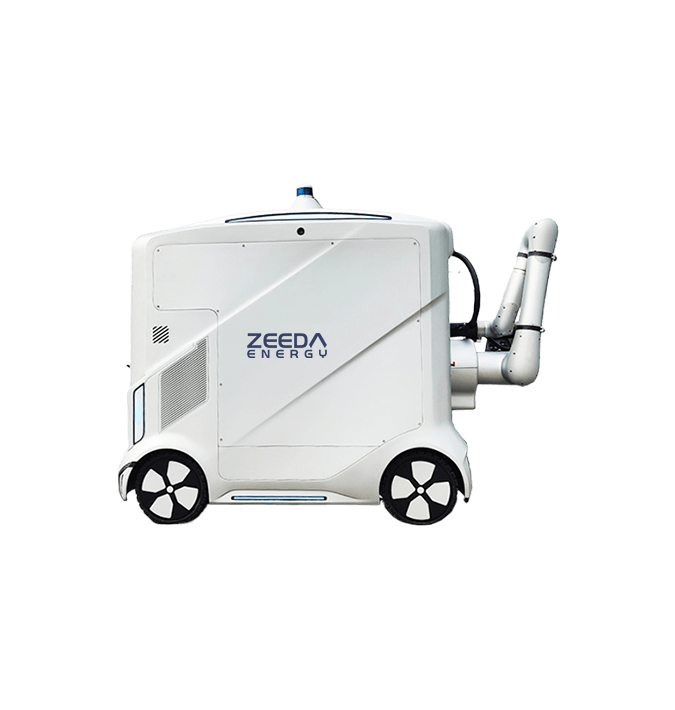

MA400GB_MA400_Robotic Charging_Product

Technical Specifications

Overall weight

<1.2t
Overall dimensions

<1600mm*1000mm*1800mm
The height at which it is inflated

800-1100mm
Arm length

≥1350mm
Operating temperature

-10°C ~ 45°C
IP(Ingress protection)

IP54
Maximum effective operating range

Length Direction: 180mm
Width Direction ± 180mm
Height Direction 800-1100mm
Adapts to the yaw angle range of the charging cradle

±3°
Robotic arm degrees of freedom

6
Visual positioning accuracy

0.1mm
Matching success rate

Not less than 99.9%
Maximum matching time

No more than 60s（Max 15s）
Interfaces/Protocols

Bluetooth/485/Ethernet/4G/wifi
control

Remote Control/Backend
Robot Travel Speed

30m/min
Robot Turning Radius

≤2.5m
Robot Navigation Method

LiDAR / SLAM
Minimum Ground Clearance

98 mm
Battery Capacity

≥60Kwh
Battery Cycle Life

≥ 3000 cycles
Maximum Discharge Power

≥ 60 kW
Robot Climbing Angle

＜5°
Energy Storage Battery Type

CATL/LFP
Cooling Method

Liquid cooling
Recharging Voltage

750 V DC
Recharging Current

≤120 A
Recharging Power

≤60 kW
Number of Charging Connectors

1
Charging Interface and Protocol standards

GB/T、CCS2
Output Voltage

DC 200-1000V
Output Current

≤120 A
Output Power

≤60 kW
Battery Pack SOC Lower Limit

10% (output disabled below this level)
Dimension

22-inch waterproof touchscreen
Display Resolution

1080 x 1920
